Workflow Builder

The Workflow Builder draws the Companion pipeline your project runs as a board. Each step is a lane, and each lane is built from nodes, small blocks of instruction your assistant reads. You change them on the board, then build.

Open it from the circuit icon at the top of the Specs view, or run SpecKit Companion: Open Workflow Builder. On a project without the Companion Spec Kit extension it shows the stock Spec Kit workflow instead.

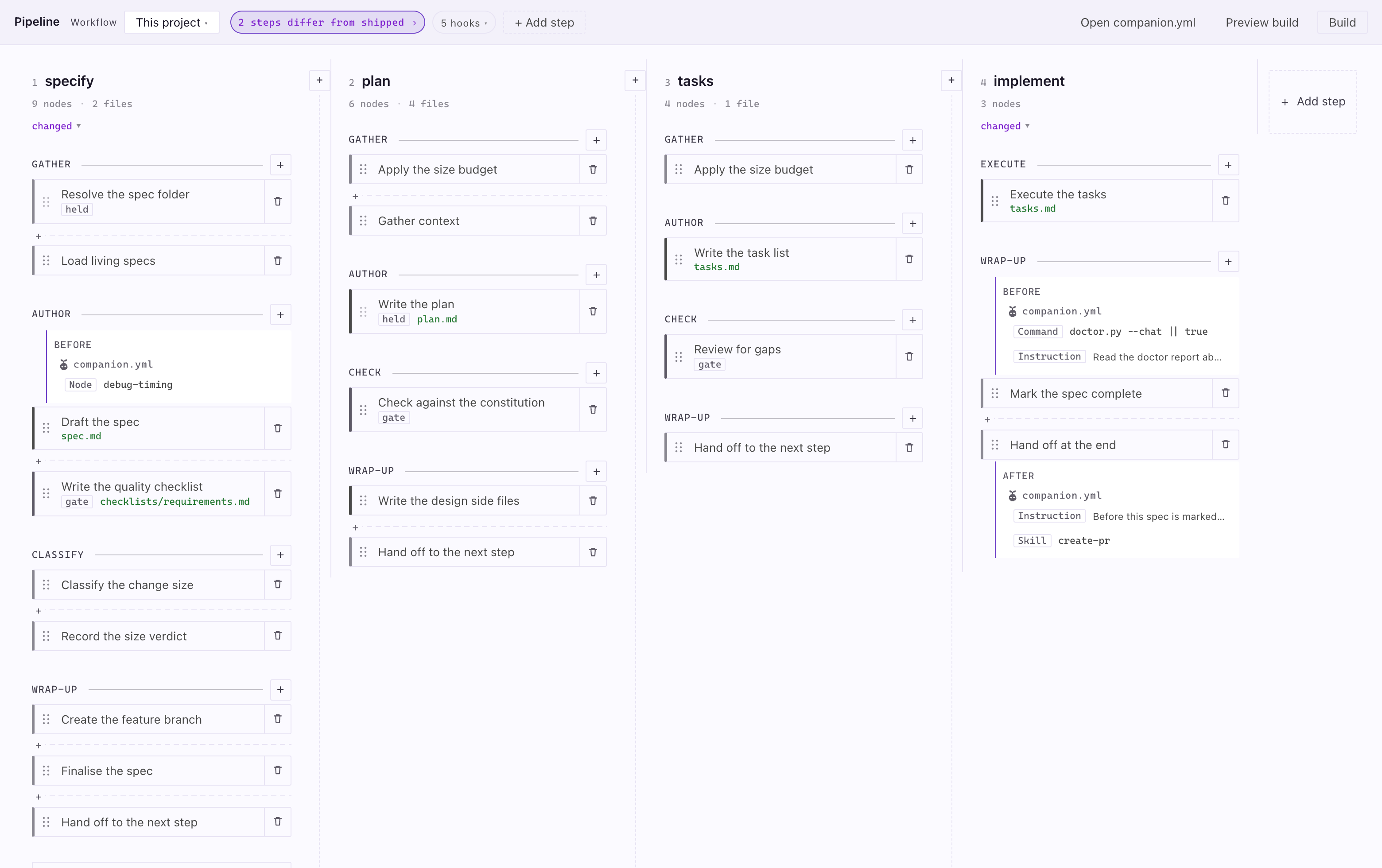

The Workflow Builder, showing four steps as columns with their phases, nodes and attached hooks. — The run reads left to right, in the order it happens. Four steps ship, and a project can add more.

At the far right, Outside the run holds what does not take a turn, such as auto, which runs the other steps hands-off.

What the marks on a lane mean

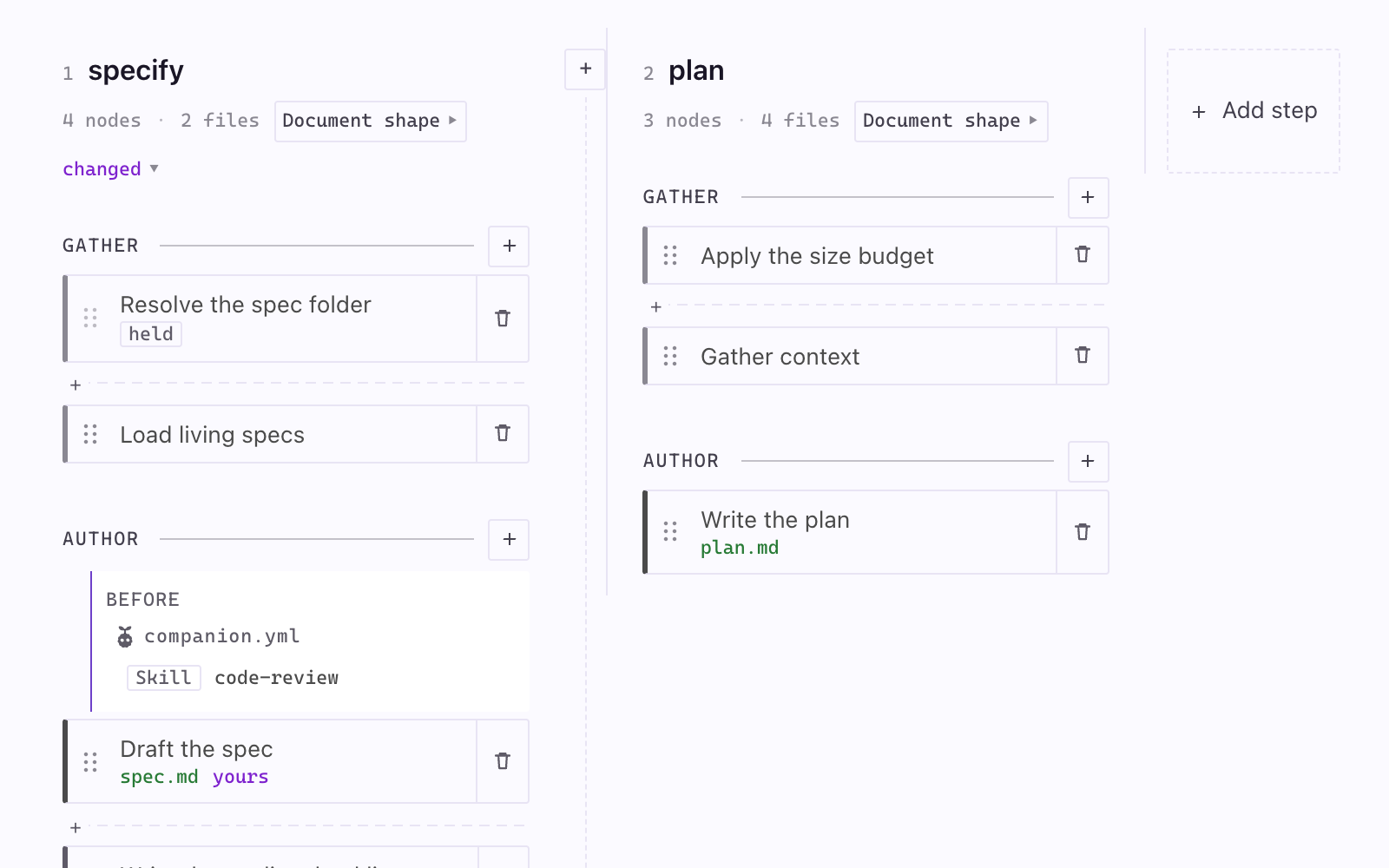

Two lanes of the board, specify and plan, with a changed step, a rewritten node, a gate and an attached hook. — Two lanes up close. Anything the project changed carries one color, and nothing else does.

Mark	What it means
specify, plan	A step. Click the name to read its preamble, the text every node in it sits under.
`changed`	This step differs from the workflow as it ships.
`4 nodes · 2 files`	How many nodes it runs and how many files a run produces. Hover names the files.
`Document shape`	The shape of the document this step writes. Click to change it.
GATHER, AUTHOR	A phase, a group of nodes.
A card	A node: one piece of instruction the assistant reads.
The bar on a card’s left edge	Node kind. Heavy writes a deliverable, light reads context or sets up.
`gate`	This node can stop the run.
`held`	This node cannot be reordered, because something after it reads what it writes.
`yours`	You rewrote this node.
`spec.md` in green	A file this node produces.
`before`, `after`	Work attached on that side of a node.
`+` on a dashed rule between cards	Attach work exactly there.
`+` in the gap between two lanes	Add a step there.

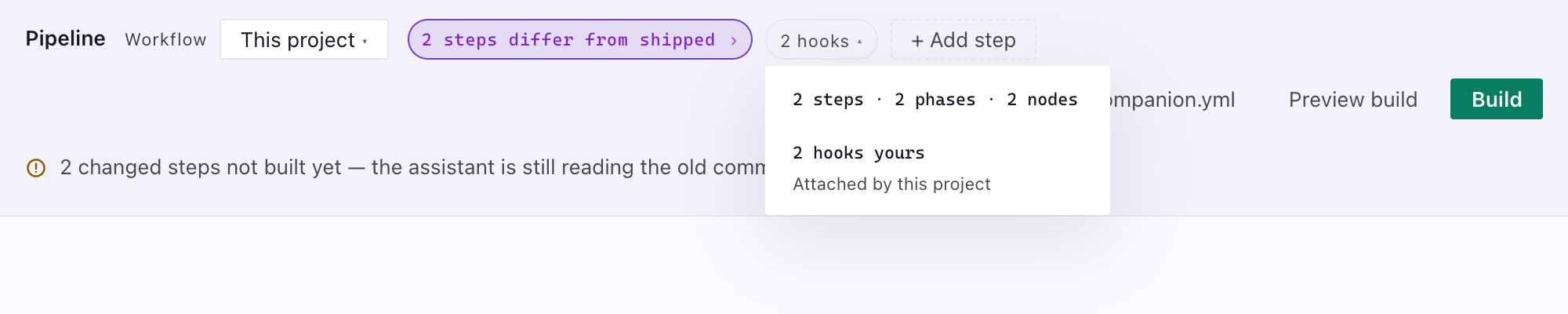

The header

Control	What it does
Workflow	Names the configuration you are on, and switches to another
Changes chip	`No changes` or `2 steps differ from shipped`. Click it to scroll to the first lane that differs.
Hooks chip	`5 hooks`. Opens the tally of steps, phases, nodes, your hooks and extension hooks.
Living specs chip	`Living specs · 3 capabilities`, or `Living specs off`. Opens the living-specs settings.
Add step	Appends a step
Open companion.yml, Preview build	Open the file, or list what a build would change. Docked narrow, both move under `⋯`.

Docked beside the editor

Dock the panel narrow and the steps stack one under the next at the panel’s width. Nothing is cut off or hidden behind a sideways scroll, and every control works the same.

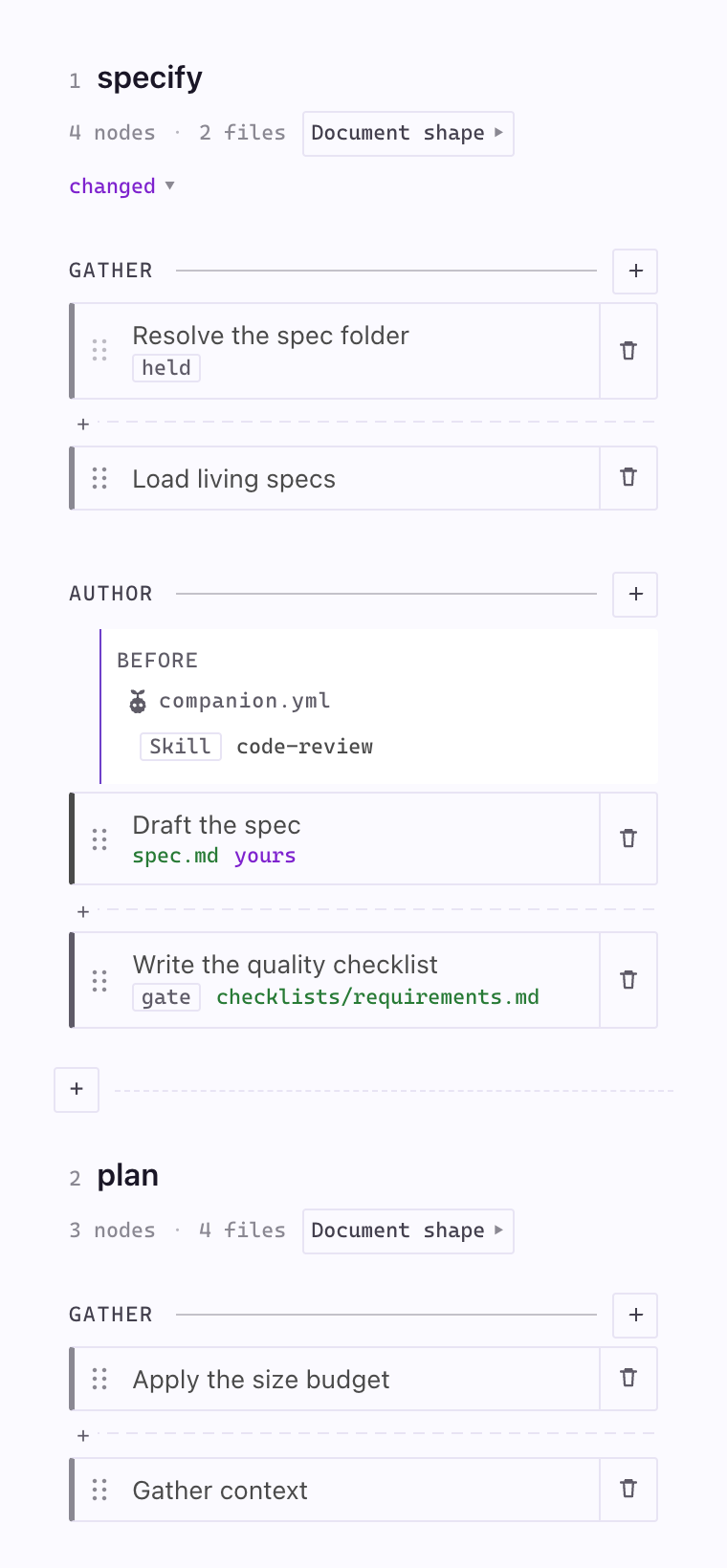

The Workflow Builder docked narrow: the specify step's gather and author phases at the panel's full width, a dashed rule with a plus between steps, and the plan step stacked underneath. — Docked narrow: the phases of specify at the panel's full width, with plan stacked underneath.

Edit a node

You do	What happens
Click a node	Its panel opens with the instructions, what the node writes, what it needs first and whether it can move
Press Edit, change the text and Save	Your version is written to `.specify/companion/nodes/` and the node is marked `yours`. The shipped file is untouched.
Press Preview build	Lists which commands would change. Nothing is written.
Press Build	Writes the command files. The header says what it wrote and when.

Nothing takes effect until you build. Every write says what it did at the foot of the panel, with an Undo until the next write.

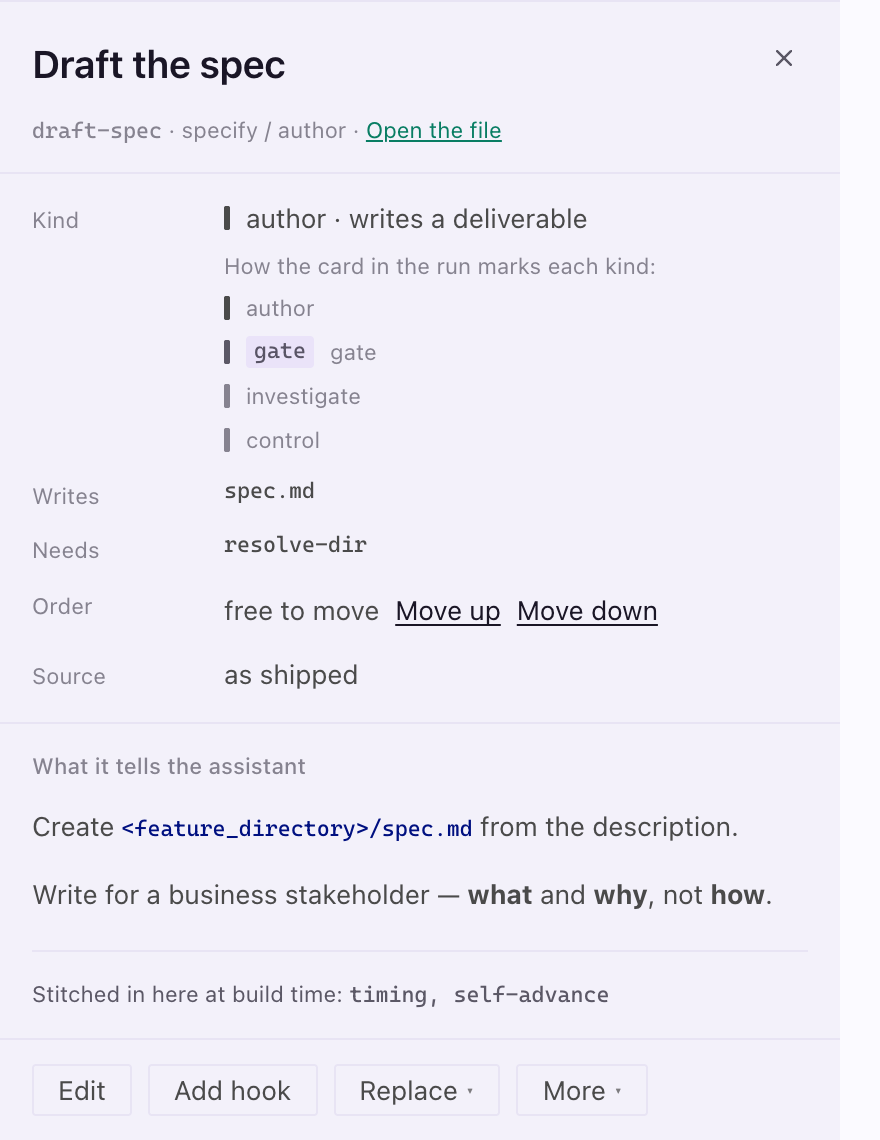

The side panel showing one node's instructions and facts. — A node's panel: the instructions, then what it writes and what it needs.

To go back, open More and choose Use the shipped node. The status line offers Undo.

Move a node

Drag a node to reorder it, or use the Order row in its panel.

Control	Result
Move up, Move down	Steps the node through its phase
Move to phase…	Lists the other phases of the step. The node joins the one you pick at the edge nearest where it was: the end of an earlier phase, or the start of a later one.

A node marked held has to stay where it is, and its row says why.

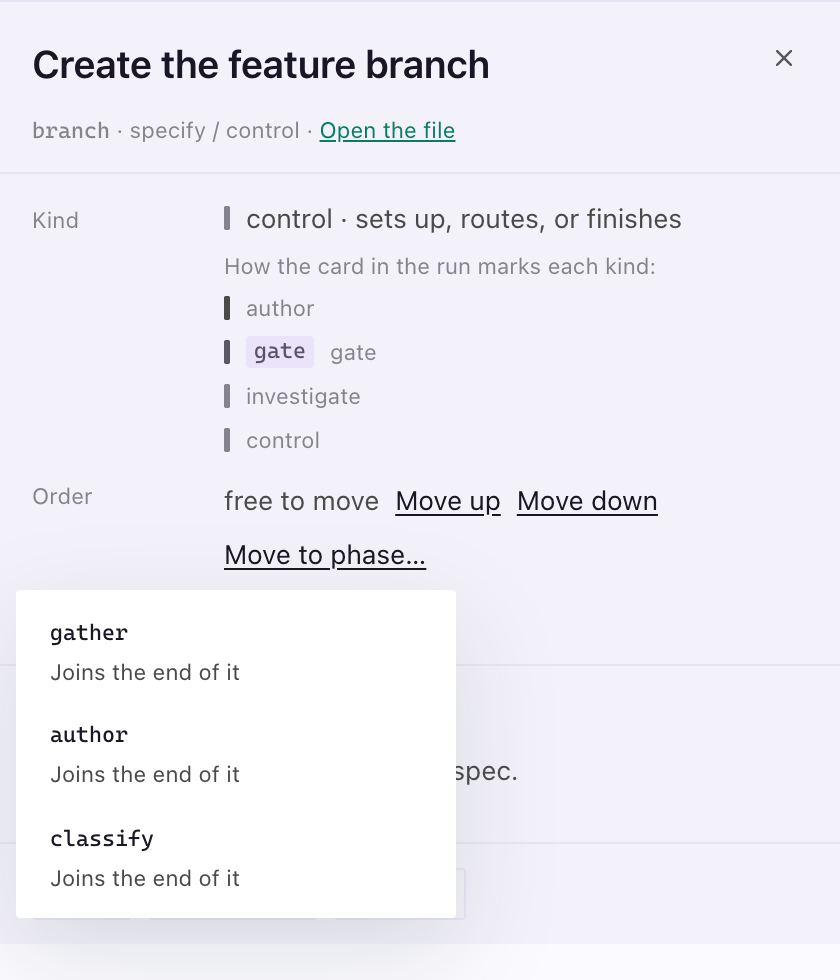

The panel for the Create the feature branch node, its Order row offering Move up, Move down and Move to phase, with the phase list open on gather, author and classify, each marked Joins the end of it. — The Order row on a node, with the phase list open.

Replace or add a node

A node with alternatives has a Replace menu, and your hooks move with it.

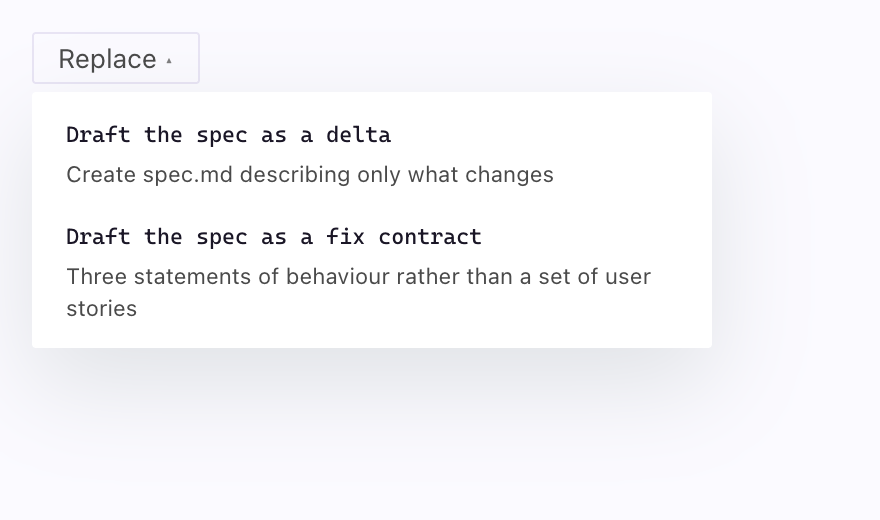

The Replace menu offering two alternatives. — Replace swaps a node for one of its alternatives.

Add node in a phase’s + menu offers add-ons that ship switched off, and nodes you removed earlier.

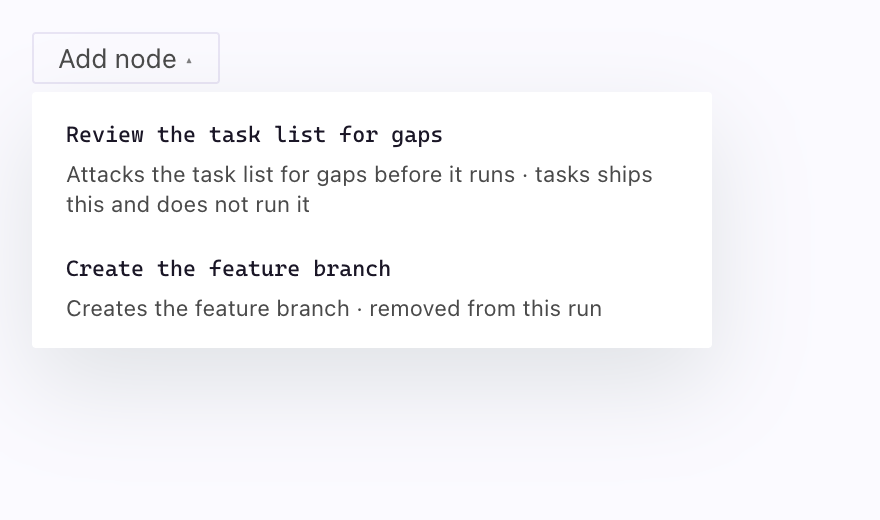

The Add node menu. — Add node: add-ons that ship switched off, and nodes you removed.

Change a phase

The + on every phase rule is the one control the board never hides. It offers Add hook, Add node, Rename phase, Split phase and Merge. A row that cannot run is greyed with the reason, such as “one node here, so there is nothing to split off”.

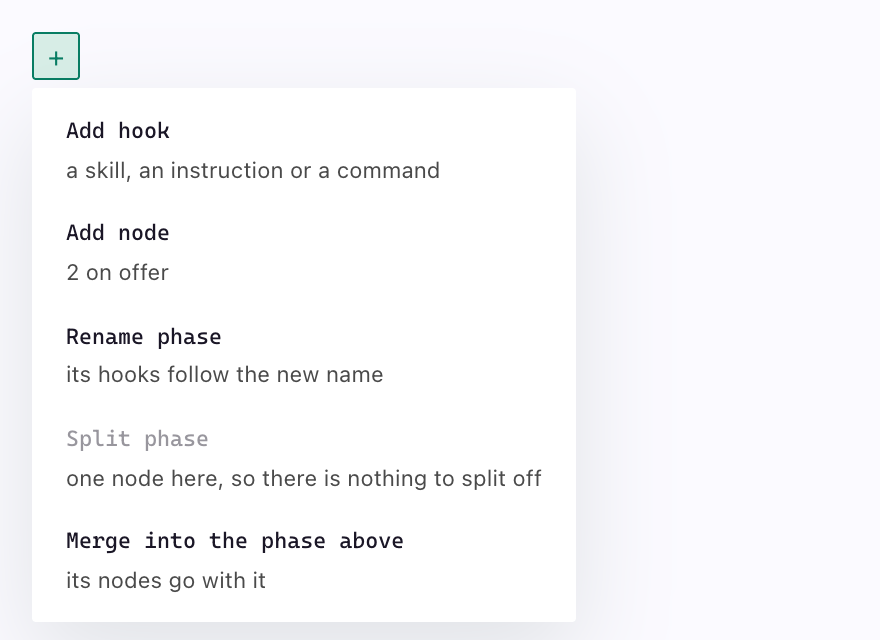

The phase menu open, offering Add hook, Add node, Rename phase, Split phase and Merge. — The phase menu.

Hooks covers Add hook.

Change where a decision routes

One step in the pipeline branches. specify ends with classify-size, which judges how big the change is, and each answer it can give sends the run a different way: simple skips plan and tasks, normal runs everything, oversized prints a notice and then runs everything.

The block at the foot of the lane draws that routing. Change the routing opens one row per answer the node can give.

You do	What happens
Tick a step under Skips	That answer folds the run past it
Untick everything	That answer runs every step
Type under Warns	The run prints that line before it continues. Empty prints nothing.
Press Save routing	Written to `commands.<step>.decisions` in your configuration, and the answer is marked `yours`
Press Use the shipped routing	Removes your entry, so the answer routes the way Companion declares it

The answers themselves come from the node that decides, so this board changes where each one goes and not what can be answered. A step cannot skip itself, and a step that does not exist is refused before anything is written.

Living specs

The Living specs chip in the header opens the other half of what a Companion run reads: whether living specs run at all, where the specs live, and which capabilities have been registered.

Setting	What it does
Runs	Turns living specs on or off. Off keeps the registry — nothing is deleted.
Specs live	Central keeps every spec under `capabilities/`. Beside the code puts each spec in the folder it describes. Chosen once, so adoption stops asking.

Capabilities, Exempt and Rules are shown and not editable here. Adoption and the capability commands write them, and a second writer for that file is how two tools come to disagree about what a project has adopted. The line under the title says which file answered: the registry at your project root, or the older livingSpecs: block inside companion.yml.

To register a capability, run /speckit-companion-living-adopt.

Reshape a document

The Document shape chip on a step lists each ## section of its template. Pick an alternative for a section, or As shipped.

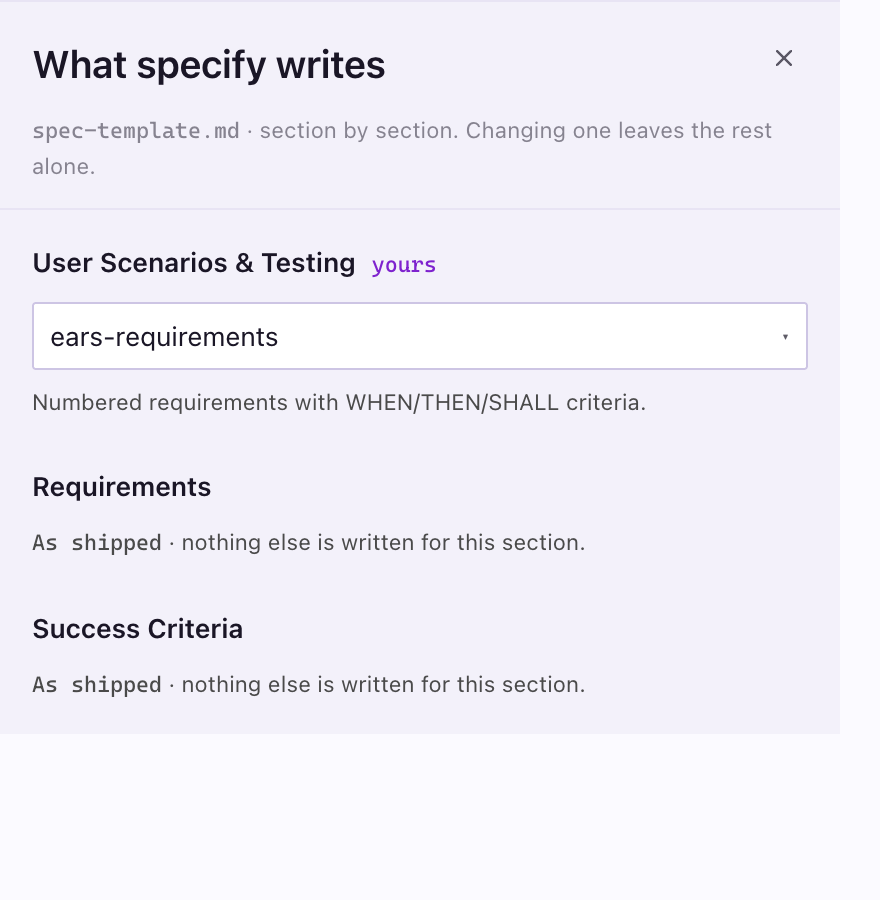

The template panel with one row per section. — One row per section of the document the step writes.

Add a step

Press Add step in the header, or the + between two lanes. Give it a name and say where it runs and what it writes. After the next build, your assistant can run it as /speckit.companion.<name>.

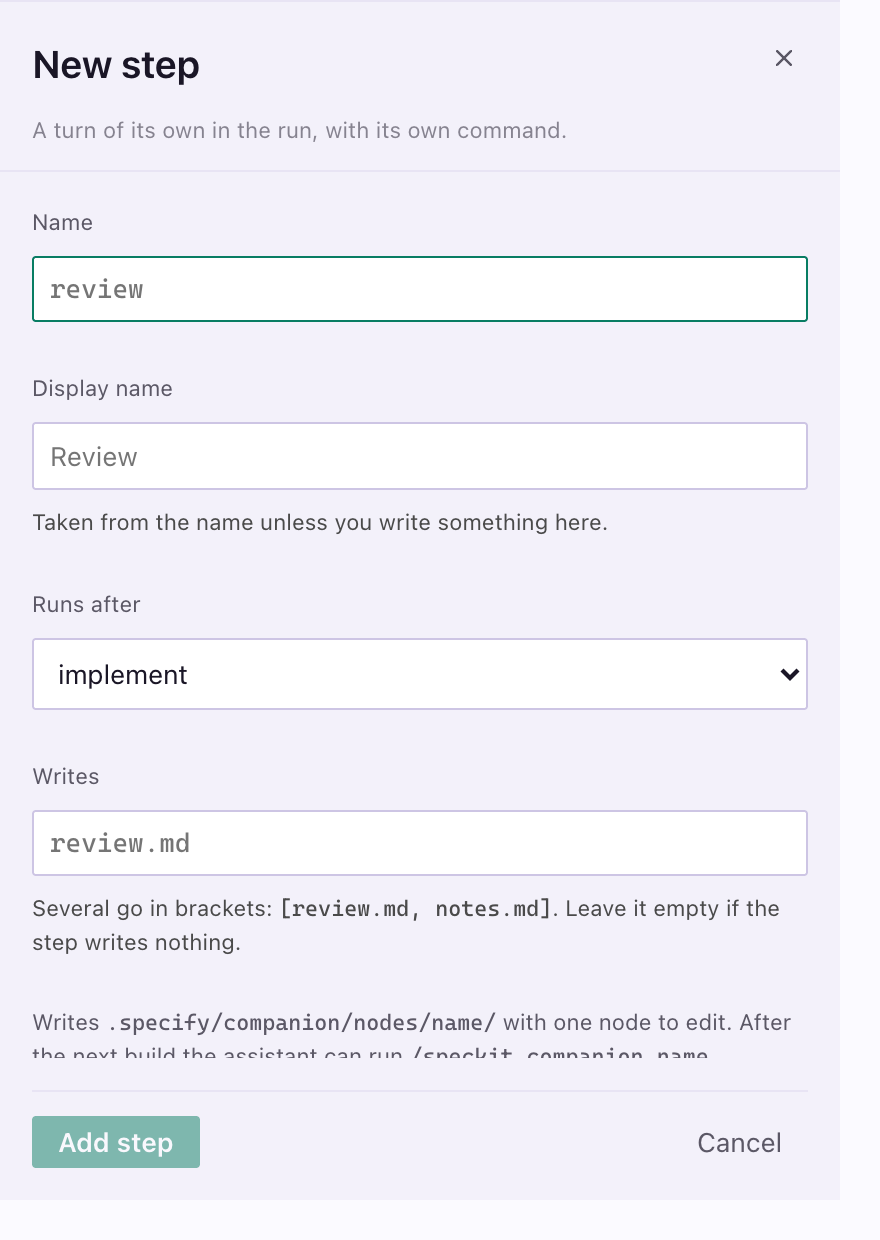

The New step form. — A new step: its name, where it runs and what it writes.

Switch workflows and start from a preset

A workflow here is a whole named configuration. Switching swaps node order, hooks, templates and routing at once, so a one-line fix and a client deliverable can run different workflows in one repository. Nodes and document sections are shared across them.

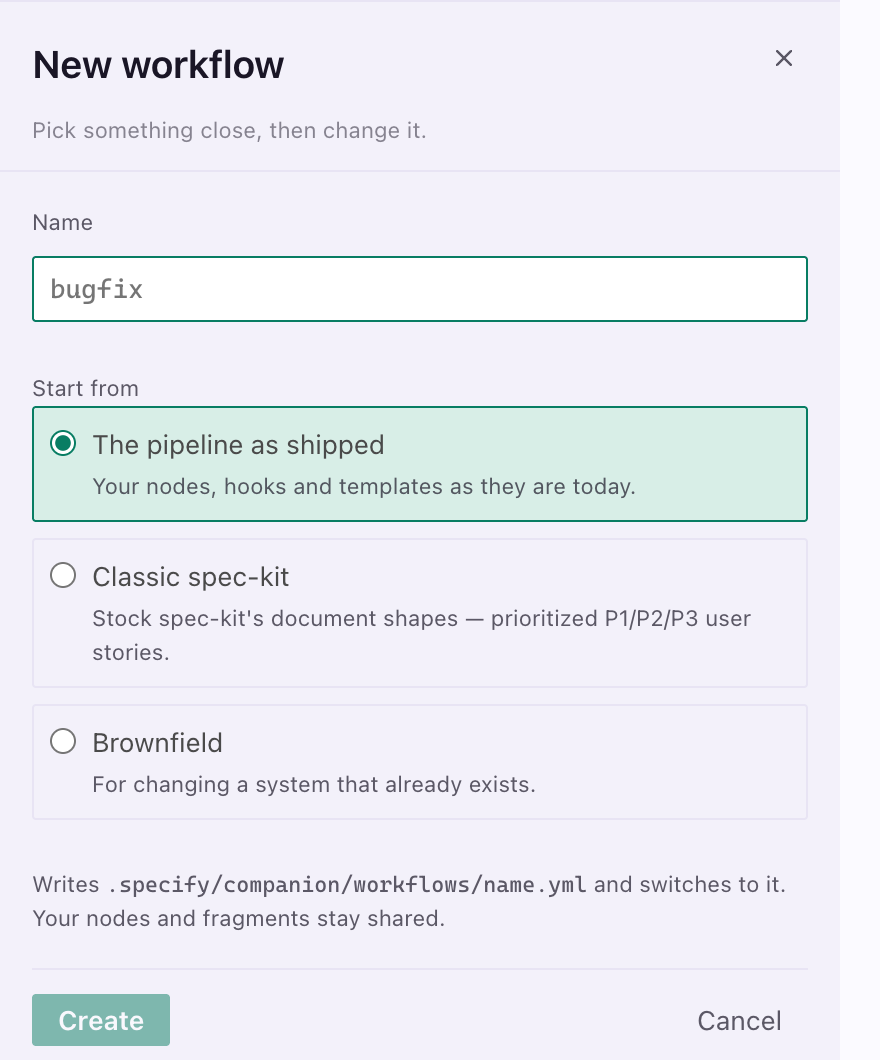

The New workflow form, offering three whole configurations to start from as cards. — A new workflow starts from what you run today, or from a preset.

Start from	For
What you run today	A variation on your current configuration
Classic spec-kit	Stock Spec Kit document shapes: prioritized P1/P2/P3 stories, the full Technical Context block. Changes how documents look, not what the run does.
Brownfield	Changing an existing system: the spec as a delta, folders numbered against every branch, the task list challenged before it runs, a person opening the result before it counts as done.

A preset is copied in and yours to change. To compare with the shipped workflow, choose As shipped in the Workflow dropdown. Your configuration is parked, not deleted.

Build

Build writes the command files your assistant loads, with your hooks, nodes and reshaped templates in place. Show the log opens the detail.

A failed build changes nothing. It names the step and leaves the working workflow as it was.

Files it reads and writes

Path	What it holds
`.specify/companion.yml`	Your configuration, the source of truth
`living-specs.yml`	Which capabilities you registered, and whether living specs run
`.specify/companion/workflows/<name>.yml`	A named configuration you can switch to
`.specify/companion/nodes/<step>/<node>.md`	A node you rewrote, or a step you added
`.specify/companion/fragments/<name>.md`	A document section you wrote
`.specify/extensions/companion/commands/`	What a build produces. Never edited by hand.

If the panel cannot draw, it offers repairs as buttons, narrowest first. Open companion.yml is always there.

A project without the Companion extension

On a project that runs stock Spec Kit the board draws that project’s own workflow, read from its files: .specify/workflows/ when a workflow is installed, otherwise the /speckit.* commands your assistant has. Each step shows in run order with the documents it writes and the extension hooks attached to it.

Everything it changes there is Spec Kit’s own.

On a stock project	What happens
A hook’s checkbox	Writes `enabled: true` or `false` into `.specify/extensions.yml`, the file Spec Kit reads. Nothing else in that file moves.
A document shape row	Opens that template from `.specify/templates/` in an editor tab. Spec Kit reads it on the next run.
The constitution	Sends `/speckit.constitution` to your assistant, in the spelling your project registers. A command owns that document, so the board does not edit it.
A workflow row	Draws that installed workflow here. Open opens its `workflow.yml`.
Build	Disabled. A build assembles Companion’s command files, and this project has none.

Which workflow a run takes is chosen when the run starts, with specify workflow run <id>; Spec Kit’s registry records no active one, so there is nothing on the board to set.

Nothing is written to .specify/companion.yml or .specify/companion/ on a stock project, and the board draws no Companion-only controls. Nodes, phases, your own hooks and the rest arrive with the Companion extension for Spec Kit, from Install in VS Code.

Hooks attaches your own work to a node, a phase or a step.
Your own workflow covers the same file by hand, and the custom workflows you write in VS Code settings, which this board does not edit.
